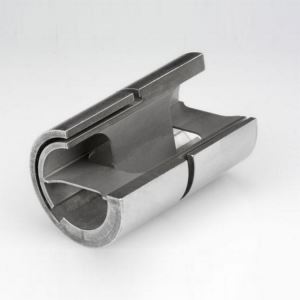

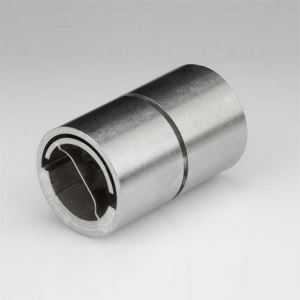

产品名称：进口轴承，C-FLEX轴承，cflex轴承，H-20轴承，进口磨床轴承，挠性轴承，十字轴承，弯曲轴承，角度轴承，柔性铰链 C-Flex pivot bearing,Single end bearing
C-FLEX弹性枢轴是数控轧辊磨床的测量系统的关键件，它主要有偏转角度，负荷以及平均寿命三个要素，为测量系统提供复位所需的弹力，随着测量次数的增加，扭簧会产生疲劳变形而失效。由于进口件采购周期长，常常成为影响用户生产的棘手因素，我公司长期备有进口原装扭簧，为客户的设备正常运行增强了保障力度。
A-10
1/8
0.0003
0.95
3.8
0.125
0.2
0.088
A-20
1/8
0.0018
8.9
12.7
0.125
0.2
0.088
A-30
1/8
0.0148
25.3
25.3
0.125
0.2
0.088
B-10
5/32
0.0004
1.4
5.6
0.1562
0.25
0.114
B-20
5/32
0.0037
13.7
19.6
0.1562
0.25
0.114
B-30
5/32
0.0296
39.3
39.3
0.1562
0.25
0.114
C-10
3/16
0.0007
2
7.8
0.1875
0.3
0.136
C-20
3/16
0.006
19.5
27.9
0.1875
0.3
0.136
C-30
3/16
0.0482
55.8
55.8
0.1875
0.3
0.136
D-10
1/4
0.0018
3.6
14.2
0.25
0.4
0.184
D-20
1/4
0.0148
35
50
0.25
0.4
0.184
D-30
1/4
0.1185
100
100
0.25
0.4
0.184
E-10
5/16
0.0037
5.7
22.8
0.3125
0.5
0.232
E-20
5/16
0.0296
55
78.6
0.3125
0.5
0.232
E-30
5/16
0.2367
157.1
157.1
0.3125
0.5
0.232
F-10
3/8
0.0065
8.4
33.6
0.375
0.6
0.279
F-20
3/8
0.0482
79.1
113
0.375
0.6
0.279
F-30
3/8
0.4002
226
226
0.375
0.6
0.279
G-10
1/2
0.0148
14.4
57.4
0.5
0.8
0.374
G-20
1/2
0.1185
140
200
0.5
0.8
0.374
G-30
1/2
0.9486
400
400
0.5
0.8
0.374
H-10
5/8
0.0296
23
92
0.625
1
0.469
H-20
5/8
0.2367
221.1
315.8
0.625
1
0.469
H-30
5/8
1.894
631.5
631.5
0.625
1
0.469
I-10
3/4
0.0482
32.4
129.4
0.75
1.2
0.564
I-20
3/4
0.4002
317.2
453.1
0.75
1.2
0.564
I-30
3/4
3.261
906.1
906.1
0.75
1.2
0.564
J-10
1
0.1185
59.2
236.6
1
1.6
0.764
J-20
1
0.9486
566.3
809
1
1.6
0.764
J-30
1
7.8023
1616
1616
1
1.6
0.764
美国原装进口，品质保证

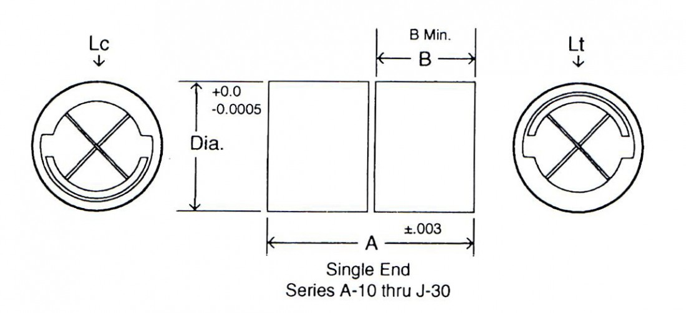

Single End Bearing
Bearing Sizes
Product Codes
Torsional Spring Rate
Load (Lc)
Capacity (Lt)
Dia. +0
- 0.0005A
± 0.003B
min1/8
A-10
.0003
0.95
3.80
.1250
.200
.088
1/8
A-20
.0018
8.90
12.70
.1250
.200
.088
1/8
A-30
.0148
25.30
25.30
.1250
.200
.088
5/32
B-10
.0004
1.40
5.60
.1562
.250
.114
5/32
B-20
.0037
13.70
19.60
.1562
.250
.114
5/32
B-30
.0296
39.30
39.30
.1562
.250
.114
3/16
C-10
.0007
2.00
7.80
.1875
.300
.136
3/16
C-20
.0060
19.50
27.90
.1875
.300
.136
3/16
C-30
.0482
55.80
55.80
.1875
.300
.136
1/4
D-10
.0018
3.60
14.20
.250
.400
.184
1/4
D-20
.0148
35.00
50.00
.250
.400
.184
1/4
D-30
.1185
100.00
100.00
.250
.400
.184
5/16
E-10
.0037
5.70
22.80
.3125
.500
.232
5/16
E-20
.0296
55.00
78.60
.3125
.500
.232
5/16
E-30
.2367
157.10
157.10
.3125
.500
.232
3/8
F-10
.0065
8.40
33.60
.3750
.600
.279
3/8
F-20
.0482
79.10
113.00
.3750
.600
.279
3/8
F-30
.4002
226.00
226.00
.3750
.600
.279
1/2
G-10
.0148
14.40
57.40
.5000
.800
.374
1/2
G-20
.1185
140.00
200.00
.5000
.800
.374
1/2
G-30
.9486
400.00
400.00
.5000
.800
.374
5/8
H-10
.0296
23.00
92.00
.6250
1.000
.469
5/8
H-20
.2367
221.10
315.80
.6250
1.000
.469
5/8
H-30
1.8940
631.50
631.50
.6250
1.000
.469
3/4
I-10
.0482
32.40
129.40
.7500
1.200
.564
3/4
I-20
.4002
317.20
453.10
.7500
1.200
.564
3/4
I-30
3.2610
906.10
906.10
.7500
1.200
.564
1
J-10
.1185
59.20
236.60
1.000
1.600
.764
1
J-20
.9486
566.30
809.00
1.000
1.600
.764
1
J-30
7.8023
1616.00
1616.00
1.000
1.600
.764
